MODEL NO |
HI 36"/42" - Windster Island Range Hood |
| |
Body Dimension |
W ( 36" , 42" ) × D 26" × H 6" |
| |
Exhaust Volume |
Low:375 ; Mid:410 ; High:600 C.F.M. |
| |
Finishes |
Brushed Stainless Steel |
| |
Rotation |
High Performance Heavy Duty Squirrel Cage |
| |
Revolutions |
1400 (R.P.M.) |
| |
Consumption - Motor |
160W |
| |
Consumption - Lamp |
20W Halogen light x 4 |
| |
Control |
Durable 3 Speed Push Button Control |
| |
Noise Level |
Low:2.5 ; High:3.8 (sone) |
| |
Voltage |
120V/60Hz (USA and Canada standard) |
| |
Appearance Treatment |
Stainless Steel and Tempered Glass Canopy |
| |
Duct Diameter |
Top 7" Round Outlet |
| |
Weight |
Hood:59 lbs;Duct:25 lbs |
| |

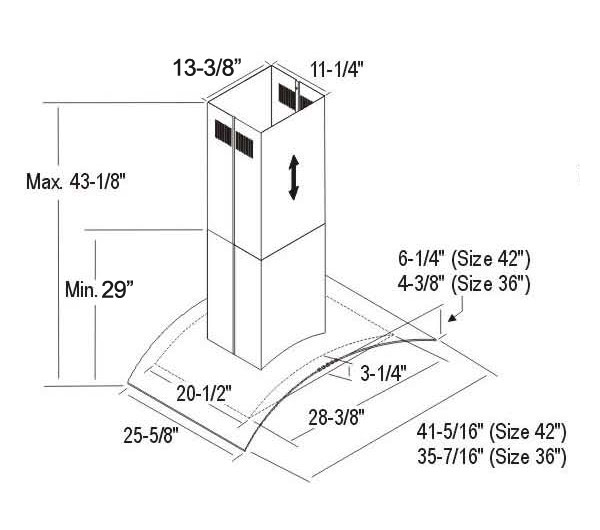

Diagram |
HI.jpg |
| |
Accessories |
Ductless Kits
Charcoal Filter
Aluminium Filter
|
| |
Manual |
HI.pdf |
| |
Warranty |
|
| |
|
| Features |
Fashion and elegant appearance. |
Tempered curved glass canopy. |
Quiet and high performance. |
Duct or ductless application. |
2 high-density dishwasher-safe aluminum filters. (easy to remove and clean) |
Recirculating kits and charcoal filter for ductless mode. (optional) |
(information subject to change without notice) |
|
