MODEL NO |
RA-35 Series - Windster Wall-Mounted Range Hood |
| |
Body Dimension |
W ( 30" , 36" , 42" , 48" ) × D 24" × H 18" |
| |
Exhaust Volume |
720 C.F.M. for 30",36",42" and 1200 C.F.M. for 48" |
| |
Finishes |
Brushed Stainless Steel |
| |
Rotation |
High Performance Heavy Duty Squirrel Cage |
| |
Revolutions |
1660 (R.P.M.) |
| |
Consumption - Motor |
180 W |
| |
Consumption - Lamp |
20W Halogen Light X 2 |
| |
Control |
Hi-tech Electronic 6 Speed with LED Indicator |
| |
Noise Level |
5.6 sones for 30",36",42" and 8.0 sones for 48" |
| |
Voltage |
120V/60Hz (USA and Canada standard) |
| |
Appearance Treatment |
Brushed Stainless Steel |
| |
Duct Diameter |
Top 6" Round Outlet |
| |
Weight |
|
| |

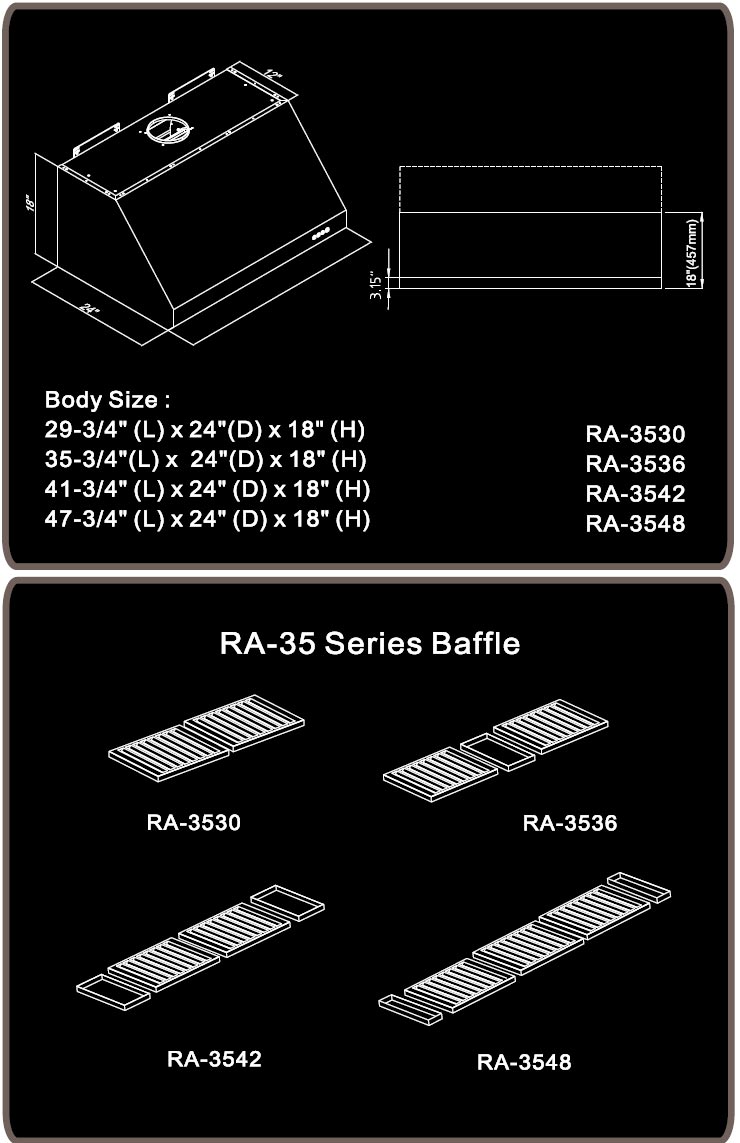

Diagram |
RA-35.jpg |
| |
Accessories |
Backsplash (30" X 30")
Backsplash (36" X 30")
|
| |
Manual |
RA-35 Series.pdf |
| |
Warranty |
|
| |
|
| Features |
Perfect welding and no sharp edges. |
All-new baffle filters design with easy removable handles. |
Multifunction LED indicator displays the speed level and delay shut-off. |
Electronic 6 speed and 30 seconds delay shut-off. |
Dual 250 watt infrafed heat lamps. (Bulbs not included) |
3 levels of halogen lighting. |
Please note that the control on all 48"units will be at the front facing instead of bottom facing. |
(Information subject to change without notice) |
|
