MODEL NO |
RA-2390 - Windster Wall-Mounted Range Hood |
| |
Body Dimension |
W 36" × D 19-2/3" × H " 12-1/5" |
| |
Exhaust Volume |
Low:300 ; Mid:480 ; High:700 C.F.M. |
| |
Finishes |
Brushed Stainless Steel |
| |
Rotation |
High Performance Heavy Duty Squirrel Cage |
| |
Revolutions |
1670 (R.P.M.) |
| |
Consumption - Motor |
180 W |
| |
Consumption - Lamp |
20W Halogen Light x 2 |
| |
Control |
Hi-tech Electronic 6 Speed with LED Indicator |
| |
Noise Level |
Low:1.5 ; Mid:3.8 ; High:5.4 (sone) |
| |
Voltage |
120V/60Hz (USA and Canada standard) |
| |
Appearance Treatment |
Brushed Stainless Steel |
| |
Duct Diameter |
Top 6" Round Outlet |
| |
Weight |
|
| |

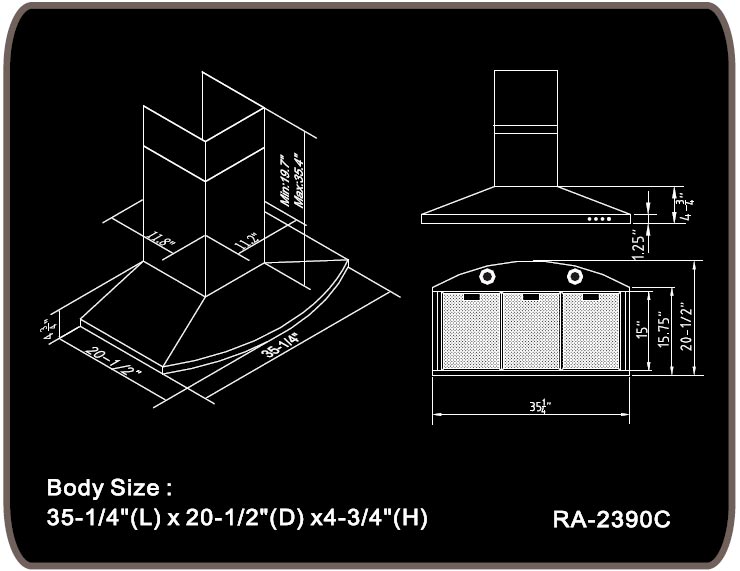

Diagram |
RA-2390C.jpg |
| |
Accessories |
Backsplash (36" X 30")
|
| |
Manual |
RA-2390C.pdf |
| |
Warranty |
|
| |
|
| Features |
Perfect welding and no sharp edges. |
3 high-density dishwasher-safe aluminum filters design. (easy to remove and clean) |
Multifunction LED indicator displays the speed level and delay shut-off. |
Electronic 6 speed and 30 seconds delay shut-off. |
3 levels of halogen lighting. |
(Information subject to change without notice) |
|
