MODEL NO |
RH-W - Windster Wall-Mounted Range Hood |
| |
Body Dimension |
W ( 30" , 36" ) × D 19-11/16" × H 10" |
| |
Exhaust Volume |
Low:230 ; Mid:410 ; High:600 C.F.M. |
| |
Finishes |
Brushed Stainless Steel |
| |
Rotation |
Single High Performance Squirrel Cage |
| |
Revolutions |
1400 (R.P.M.) |
| |
Consumption - Motor |
160 W |
| |
Consumption - Lamp |
20W Halogen Light x 2 |
| |
Control |
Durable 3 Speed Push Button Control |
| |
Noise Level |
Low:1.5 ; High:3.8 (sone) |
| |
Voltage |
120V/60Hz (USA and Canada standard) |
| |
Appearance Treatment |
Brushed Stainless Steel |
| |
Duct Diameter |
Top 7" Round Outlet |
| |
Weight |
Approx. 50 lbs |
| |

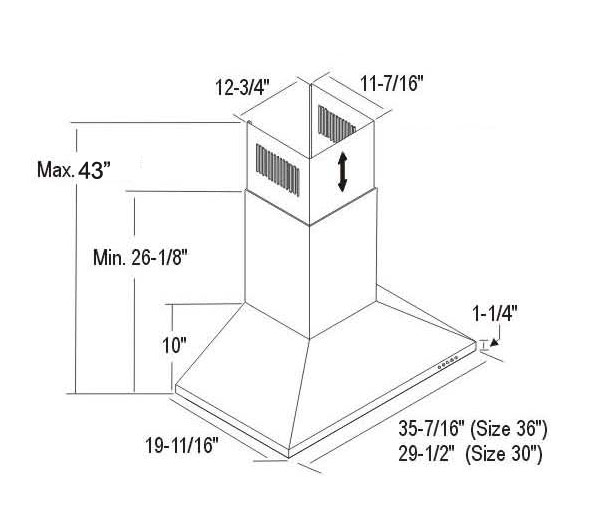

Diagram |
RH-W.jpg |
| |
Accessories |
Backsplash (30" X 30")
Backsplash (36" X 30")
|
| |
Manual |
RH-W.pdf |
| |
Warranty |
|
| |
|
| Features |
Perfect welding and no sharp edges. |
Fashion and seamless design. |
2 (30") / 3(36") High-density dishwasher-safe aluminum filters design. (easy to remove and clean) |
(Information subject to change without notice) |
|
