ra-35
specifications
| model | size | color | cfm | sones | speed | light | duct | amp | Recirculating |
|---|---|---|---|---|---|---|---|---|---|
| ra-35w30ss | 30" | Stainless Steel | 800 | 5.6 | 3 | LED x 2 65 lm/w each |
8" vertical | 4 | No |
| ra-35w36ss | 36" | Stainless Steel | 800 | 5.6 | 3 | LED x 2 65 lm/w each |
8" vertical | 4 | No |
| ra-35w42ss | 42" | Stainless Steel | 800 | 5.6 | 3 | LED x 2 65 lm/w each |
8" vertical | 4 | No |
| ra-35w48ss | 48" | Stainless Steel | 1000 | 8.0 | 3 | LED x 3 65 lm/w each |
8" vertical | 4 | No |
features
- All-new baffle filters design with easy removable handles.
- Electronic 3 speed and 30 seconds delay shut-off.
- Dual 250 watt infrared heat lamps. (Heat lamp not included)
- Electronic push button control with LED indicator.
accessories & options
| model | description | size | color | note |
|---|---|---|---|---|
| ra-35bf | Baffle filter | - | Stainless Steel | 1 piece |
| ra-3530dc | Duct cover | 30" | Stainless Steel | 1 piece |
| ra-3536dc | Duct cover | 36" | Stainless Steel | 1 piece |
| ra-3542dc | Duct cover | 42" | Stainless Steel | 1 piece |
| ra-3548dc | Duct cover | 48" | Stainless Steel | 1 piece |
| bs30 | Backsplash | 30" x 30" | Stainless Steel | 1 piece |
| bs36 | Backsplash | 36" x 30" | Stainless Steel | 1 piece |
| bs42 | Backsplash | 42" x 30" | Stainless Steel | 1 piece |

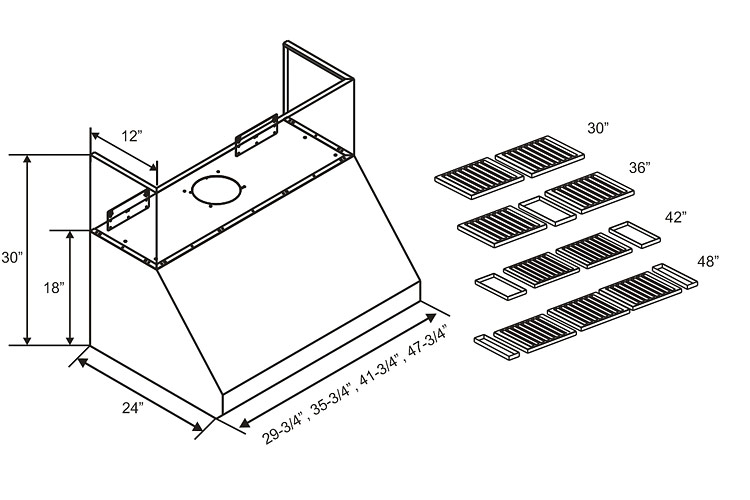

diagram
