ra-36
specifications
| model |
size |
color |
cfm |
sones |
speed |
light |
duct |
amp |
Recirculating |
| ra-36ss |
36" |
Stainless Steel |
700 |
5.4 |
6 |
Halogen |
6" / 7" vertical |
2 |
No |
| ra-42ss |
42" |
Stainless Steel |
700 |
5.4 |
6 |
Halogen |
6" / 7" vertical |
2 |
No |
Download manual
features
- All-new 4 baffle filters design with easy removable handles.
- LCD digital indicator displays the speed level.
- Electronic 6 speed and 30 seconds delay shut-off.
- 3 levels of halogen lighting.
accessories & options
| model |
description |
size |
color |
note |
| ra-36sdc |
Short duct cover |
16" |
Stainless Steel |
7-1/2 ~ 8 ft ceiling. |
| ra-36ldc |
Long duct cover |
59" |
Stainless Steel |
9 ~ 11 ft ceiling. |
| ra-36bf |
Baffle filter |
- |
Stainless Steel |
1 piece. |

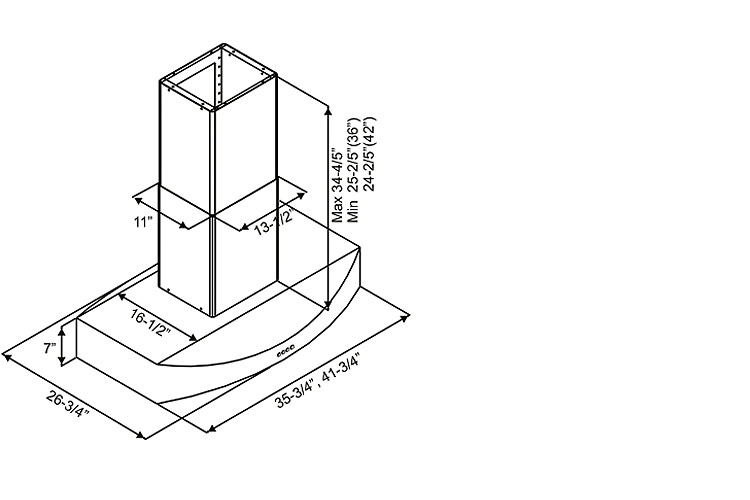

diagram
