SPECIFICATIONS

MODEL SIZE COLOR CFM SONES SPEED LIGHT DUCT AMP RECIRCULATING
WS-3930SS 30″ Stainless Steel 520 8.5 3 LED x 2 7″ vertical 2.2 No
WS-3936SS 36″ Stainless Steel 520 8.5 3 LED x 2 7″ vertical 2.2 No
WS-3942SS 42″ Stainless Steel 530 8.5 3 LED x 2 7″ vertical 2.2 No

Download manual

FEATURES

  • Heavy duty baffle filters.
  • Energy efficient LED lighting system.

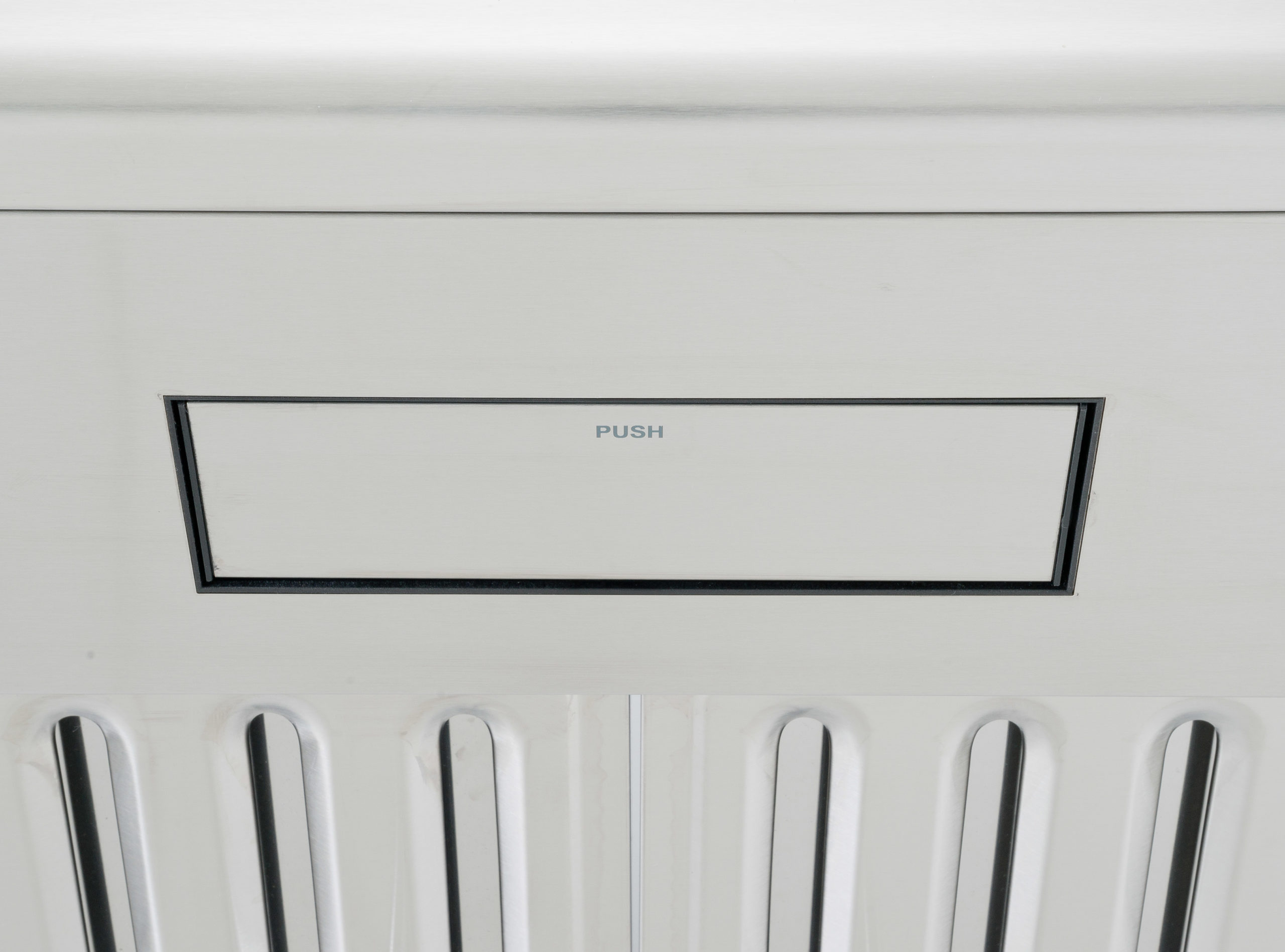

  • Concealed control panel. Automatically opens with just a light push.
  • Delay shut-off technology.
  • Turbine impeller design.
  • Optional: Aluminum filters.

ACCESSORIES & OPTIONS

MODEL DESCRIPTION SIZE COLOR NOTE
WS-39AF Aluminum filter 1 piece
WS-39BF Baffle filter 1 piece
WS-39AFF Aluminum filter frame with 2 handles 1 set
BS30 Backsplash 30″ x 30″ Stainless Steel 1 piece
BS36 Backsplash 36″ x 30″ Stainless Steel 1 piece
BS42 Backsplash 42″ x 30″ Stainless Steel 1 piece
WE30 Wall extension 30″ W x 6″ H x 2″ D Stainless Steel 1 piece
WE36 Wall extension 36″ W x 6″ H x 2″ D Stainless Steel 1 piece
WE42 Wall extension 42″ W x 6″ H x 2″ D Stainless Steel 1 piece
7″ DAMPER Damper 7″ 1 piece
PC16 Medium-duty power cord
16 gauge / 3 wire / 13 amp / 120 volt / 1,500 watt capacity
44-1/2″ 1 piece

DIAGRAM

Diagram WS-39
