CALIFORNIA ENERGY COMMISSION
The CFM levels for this model have been tested and certified by the laboratories of the California Energy Commission. More info.
SPECIFICATIONS

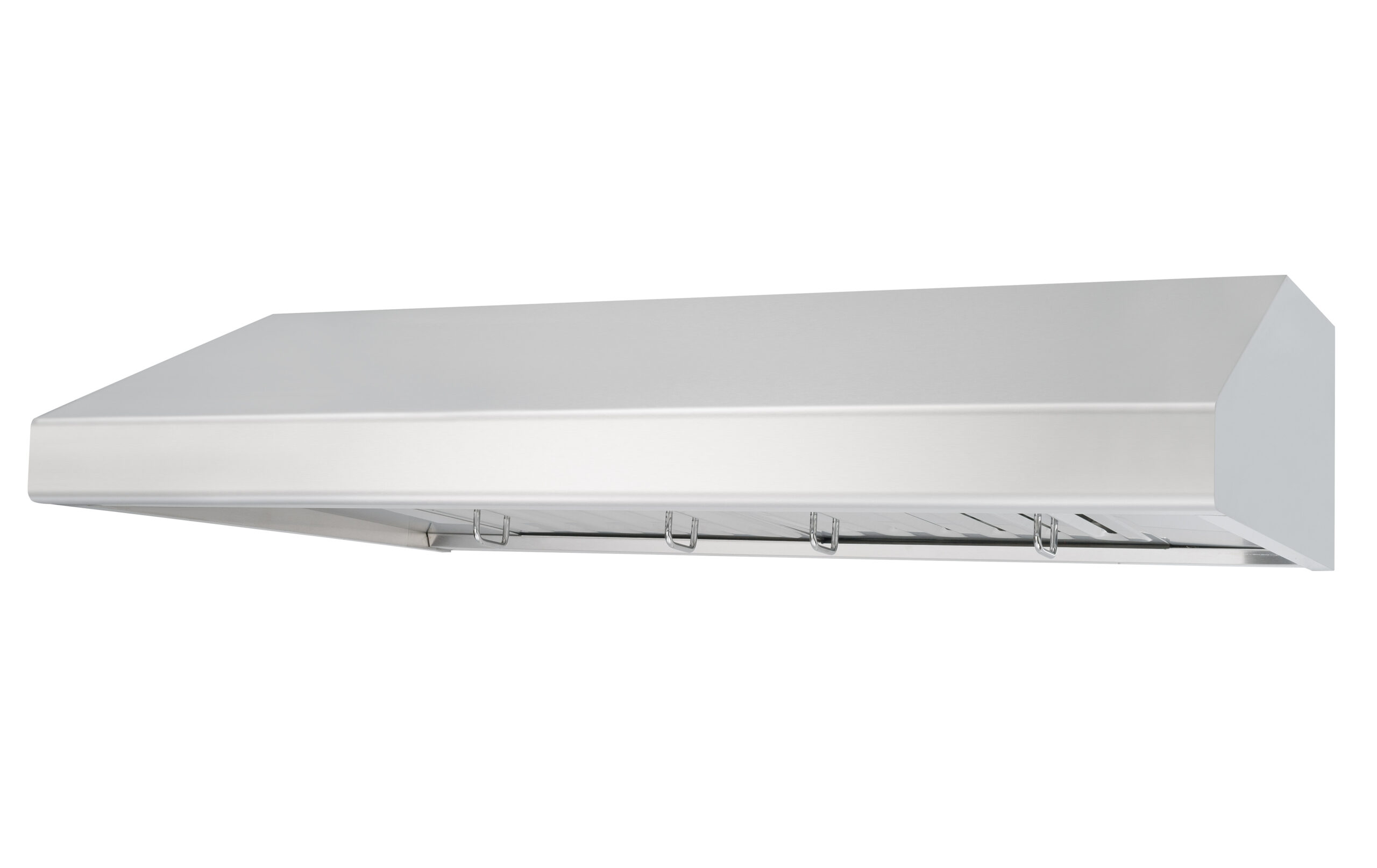

| MODEL | SIZE | COLOR | CFM | SONES | SPEED | LIGHT | DUCT | AMP | RECIRCULATING |
|---|---|---|---|---|---|---|---|---|---|
| WS-3230SS | 30″ | Stainless Steel | 520 | 8.5 | 3 | LED x 2 | 7″ vertical | 2.2 | No |
| WS-3236SS | 36″ | Stainless Steel | 520 | 8.5 | 3 | LED x 2 | 7″ vertical | 2.2 | No |
| WS-3242SS | 42″ | Stainless Steel | 530 | 8.5 | 3 | LED x 2 | 7″ vertical | 2.2 | No |
| WS-3248SS | 48″ | Stainless Steel | 540 | 8.5 | 3 | LED x 2 | 7″ vertical | 2.2 | No |
FEATURES
- Baffle filters with handles for easy removal.
- Energy efficient LED lighting system.

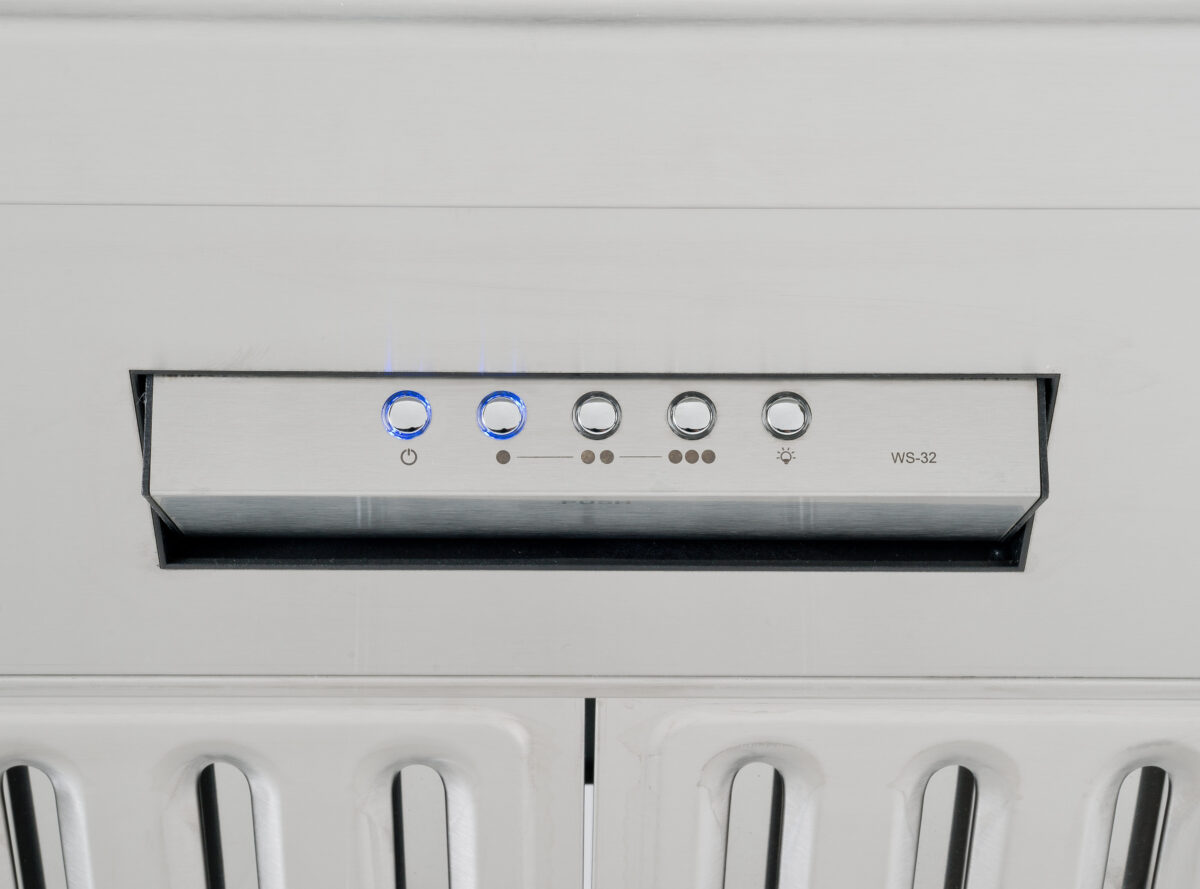

- Concealed control panel. Automatically opens with just a light push.
- Delay shut-off technology.
- Turbine impeller design.
- Optional: aluminum filters.
ACCESSORIES & OPTIONS
| MODEL | DESCRIPTION | SIZE | COLOR | NOTE |
|---|---|---|---|---|
| WS-32AF | Aluminum filter | – | – | 1 piece |
| WS-32BF | Baffle filter | – | – | 1 piece |
| WS-32AFF | Aluminum filter frame with 2 handles | – | – | 1 set |
| BS30 | Backsplash | 30″ x 30″ | Stainless Steel | 1 piece |
| BS36 | Backsplash | 36″ x 30″ | Stainless Steel | 1 piece |
| BS42 | Backsplash | 42″ x 30″ | Stainless Steel | 1 piece |
| WE30 | Wall extension | 30″ W x 6″ H x 2″ D | Stainless Steel | 1 piece |
| WE36 | Wall extension | 36″ W x 6″ H x 2″ D | Stainless Steel | 1 piece |
| WE42 | Wall extension | 42″ W x 6″ H x 2″ D | Stainless Steel | 1 piece |
| WE48 | Wall extension | 48″ W x 6″ H x 2″ D | Stainless Steel | 1 piece |
| 7″ DAMPER | Damper | 7″ | – | 1 piece |
| PC16 | Medium-duty power cord 16 gauge / 3 wire / 13 amp / 120 volt / 1,500 watt capacity |
44-1/2″ | – | 1 piece |
DIAGRAM
| size | 30", 36", 42", 48" |
|---|
